1.1. Background#

The Jakarta Provincial Government is committed to building a sustainable transportation system. TransJakarta services continue to expand, and the integration of JakLingko improves transportation quality in Jakarta. The Sustainable Transportation Award (STA) 2021 from the Institute for Transportation and Development Policy (ITDP) affirms this achievement. Jakarta became one of the first cities in Southeast Asia to receive this award, surpassing other major cities (ITDP, 2021; Prambors, 2020).

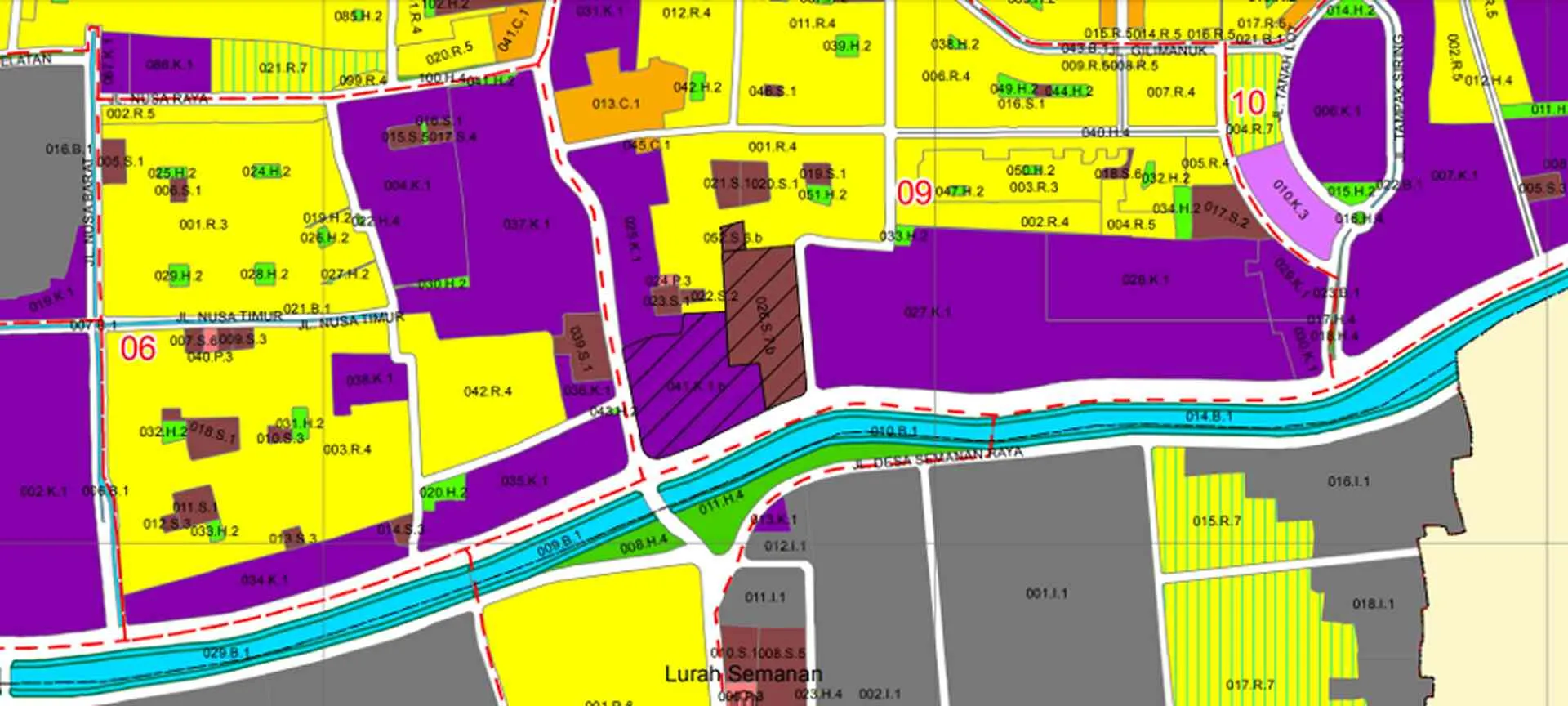

On the other hand, architects also play a role in supporting this vision through concepts and designs that strengthen the development of an integrated transportation system. The author sees potential in developing the KBT area in West Jakarta, which lies on a major land transportation route, serving both public and private transport. This area is crossed by Jl. Daan Mogot, a main arterial road parallel to the Mokervart River (see the blue legend in Figure 1.2 and Figure 1.3), and is equipped with various supporting facilities as listed in Table 1.1.

To address the challenges in developing this area, this thesis employs the dynamic multi-layer (DML) experimental method, which analyzes multiple aspects simultaneously. This method is expected to resolve complex site issues, particularly in enhancing walkability along Jl. Daan Mogot and Terminal Kalideres—two areas with significant potential for future development.

1.2. Case study#

This case study identifies several issues grouped into Architectural issues and Jakarta City issues, which will be discussed further in this section.

1.2.1. Architectural issues#

Here are the architectural issues identified, consisting of one main issue and three sub-issues in this case study.

1.2.1.1. Main issue: Facilities at KBT#

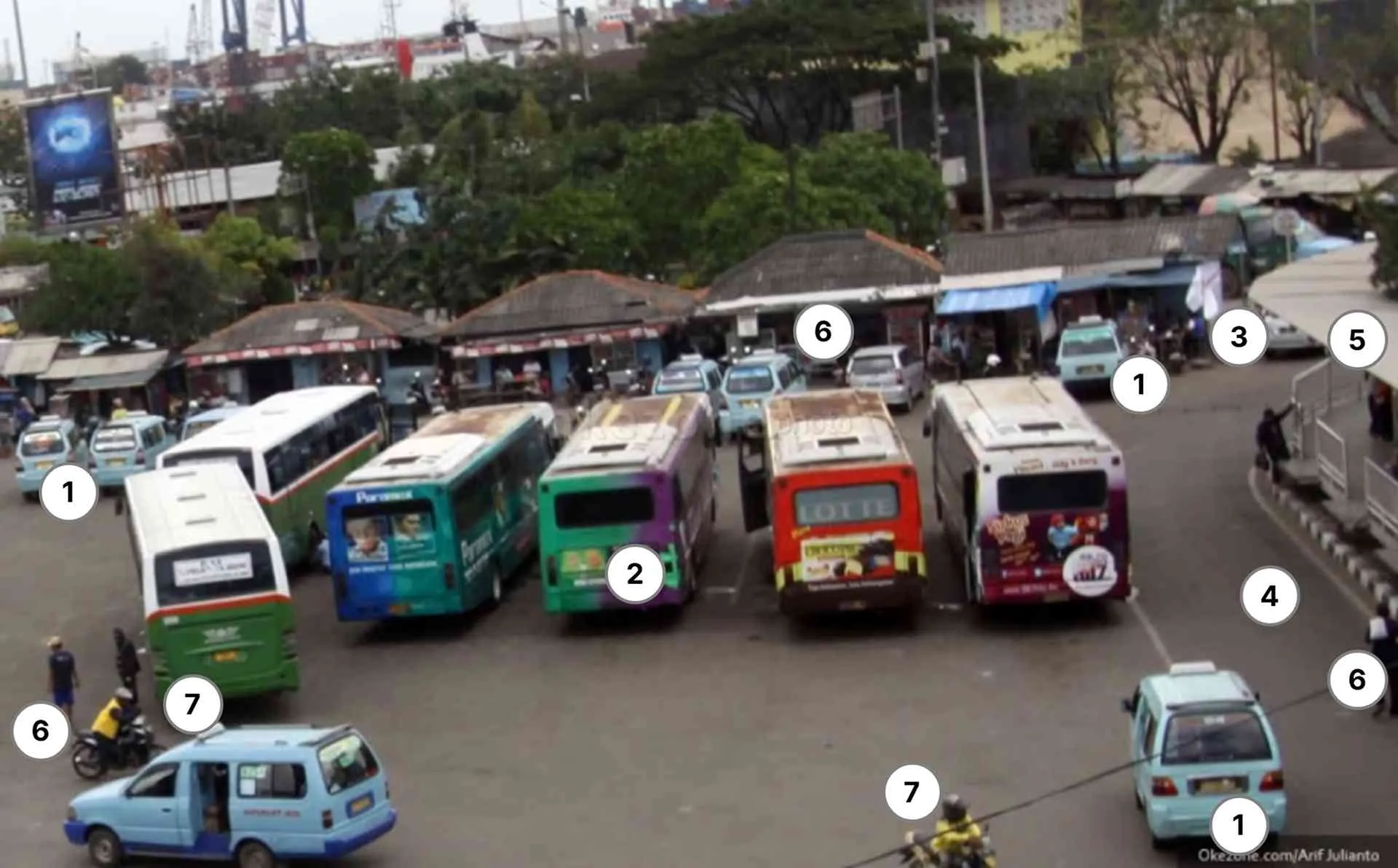

The facilities at KBT are quantitatively sufficient, but they have not functioned synergistically to reach their full potential. The existing facilities include intercity services (AKAP bus stops), local services (TransJakarta stops, angkot stops, city bus stops), other supporting transportation modes (stationary and online ojek), as well as facilities for private vehicles such as drop-off areas and park and ride, and other supporting facilities like food courts (see Figure 1.5). With these facilities, KBT is classified as a Type A terminal in Jakarta, as per Article 24, paragraph (2) of the Ministry of Transportation Regulation PM 24/2021 on Road Transport Terminal Management.

However, qualitatively, this terminal still has many shortcomings. One of the main issues is the suboptimal layout of the facilities, where the proximity of different service areas causes overlapping activities, reducing comfort and efficiency (see Figure 1.5). This deficiency contributes to various issues, such as increased potential for crime, disorderly passenger behavior, and insufficient public transportation facilities needed by the community.

1.2.1.2. Sub-issue: Crime risk#

The lack of facilities at KBT has led to a sub-issue, one of which is the high vulnerability to crime, including street gang activities. According to information from Kalideres Police Chief, Kompol Danu Wiyata, there are eight crime-prone areas, such as hypnotism, drugging, and pickpocketing. These areas include rest areas, ticket counters, departure waiting areas, parking areas, city terminal areas, entry and exit routes, eating areas, and around traffic lights to Kalideres Police Station.

1.2.1.3. Sub-issue: Passenger behavior#

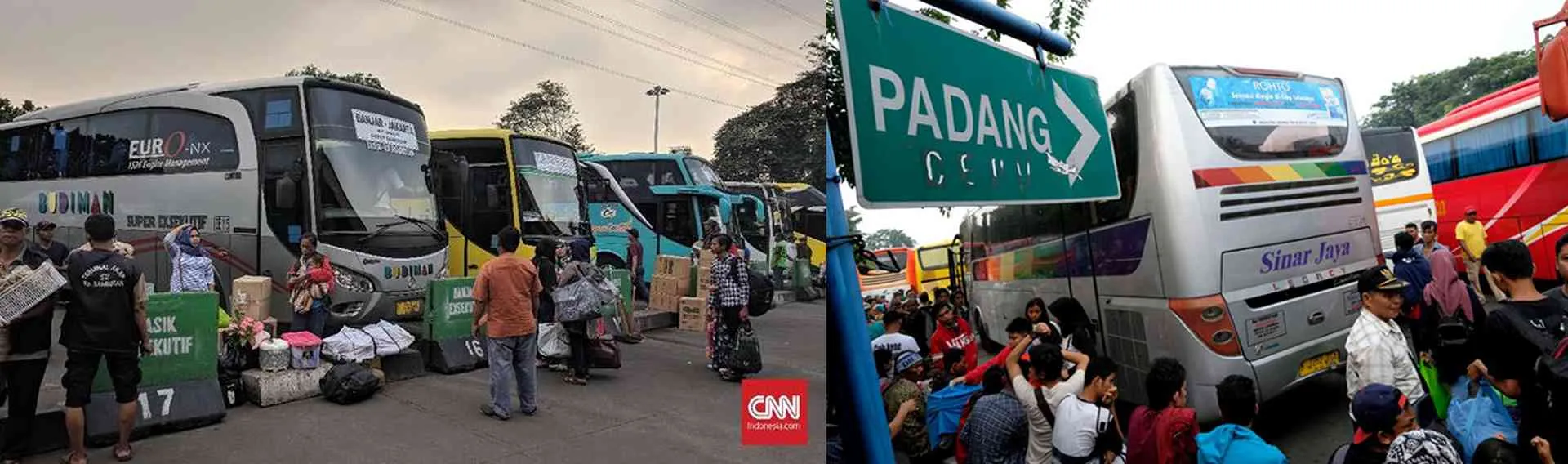

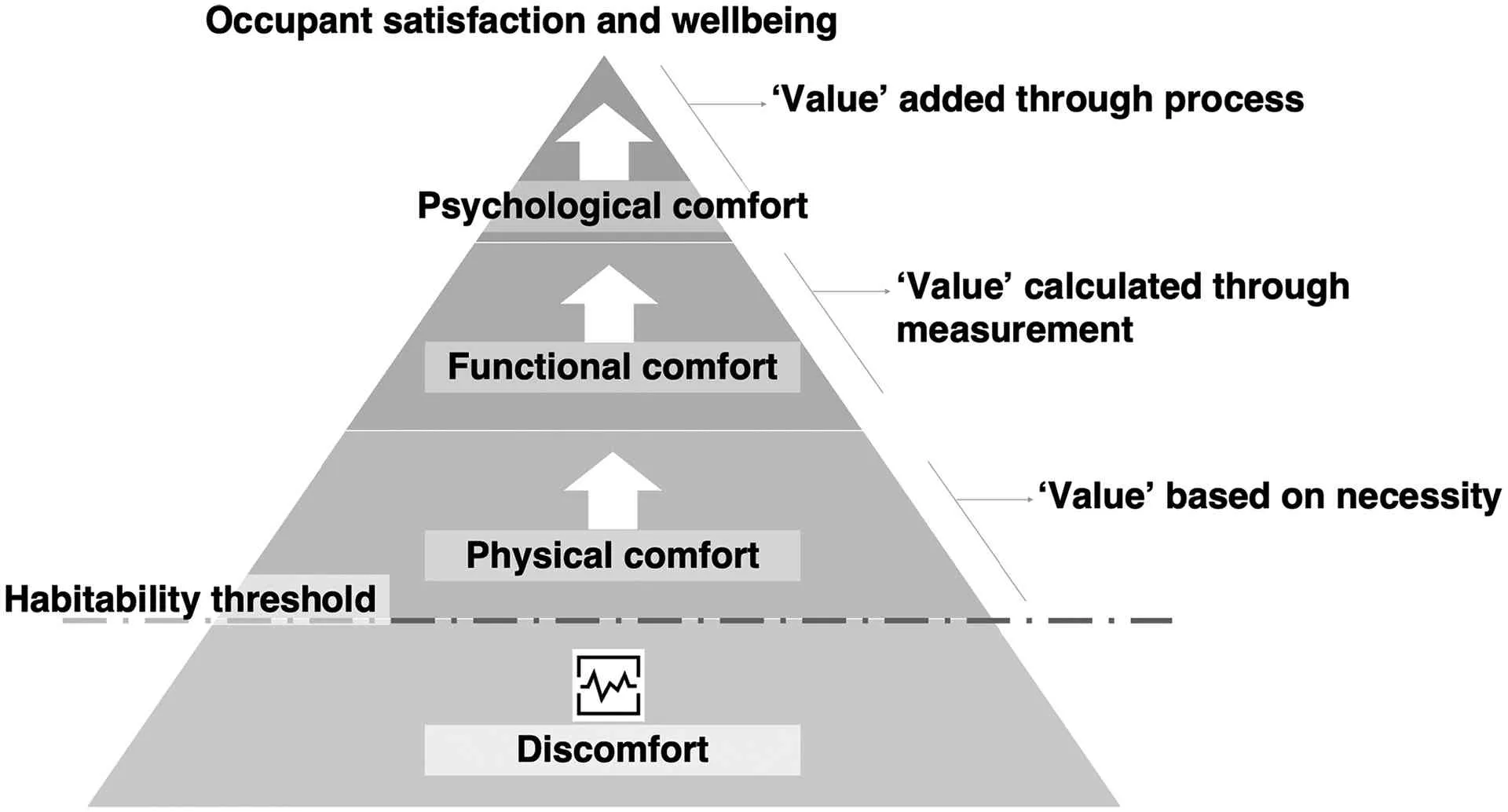

The lack of facilities at KBT also impacts the disorderly behavior of passengers (see Figure 1.6). Although the facilities are quite complete, the terminal design has not fully met user expectations. This is reflected in the pyramid graph of habitability by Vischer (Figure 1.7), which shows the lack of indicators for a sense of belonging, ownership, and control over the environment (Zhang et al., 2022).

1.2.1.4. Sub-issue: Public demand for transport facilities#

Previous research shows that if public transportation usage increases from 10% to 20% of total trips, traffic accidents could decrease by up to 15% (Sustainable Mobility for All, 2017). The 2020-2024 National Medium-Term Development Plan (RPJMN) emphasizes the importance of developing and improving public transportation facilities, which has already begun. However, many parties argue that its implementation is still not effective. The government has made efforts to integrate the transportation system through the cashless society program (such as JakLingko, electric buses, and the Intelligent Transport System), offering the public alternatives to private vehicles to reduce congestion.

Minister of Transportation Budi Karya Sumadi, at the National Economic and Industry Committee (KEIN) event on February 22, 2017, emphasized that intermodal continuity across Indonesia is crucial for supporting the stability of the community’s economy. For example, the development of the Bus Rapid Transit (BRT) system in Yogyakarta and Jakarta, as well as Ro-Ro ships (land-sea distribution), shows the government’s efforts to improve intermodal connectivity. Without good integration, public interest in public transportation will remain low, and private vehicles will continue to be the primary choice (Kemenhub, 2017; Kemenhub, 2021).

Sustainable transportation is also a solution to reduce congestion, improve public transportation safety, and support the use of low-emission fuels (Richardson et al., 2000).

1.2.2. Jakarta City issues#

On the other hand, there are issues related to Jakarta city, covering two main issues and three sub-issues in this case study.

1.2.2.1. Main issue: Need for a TH#

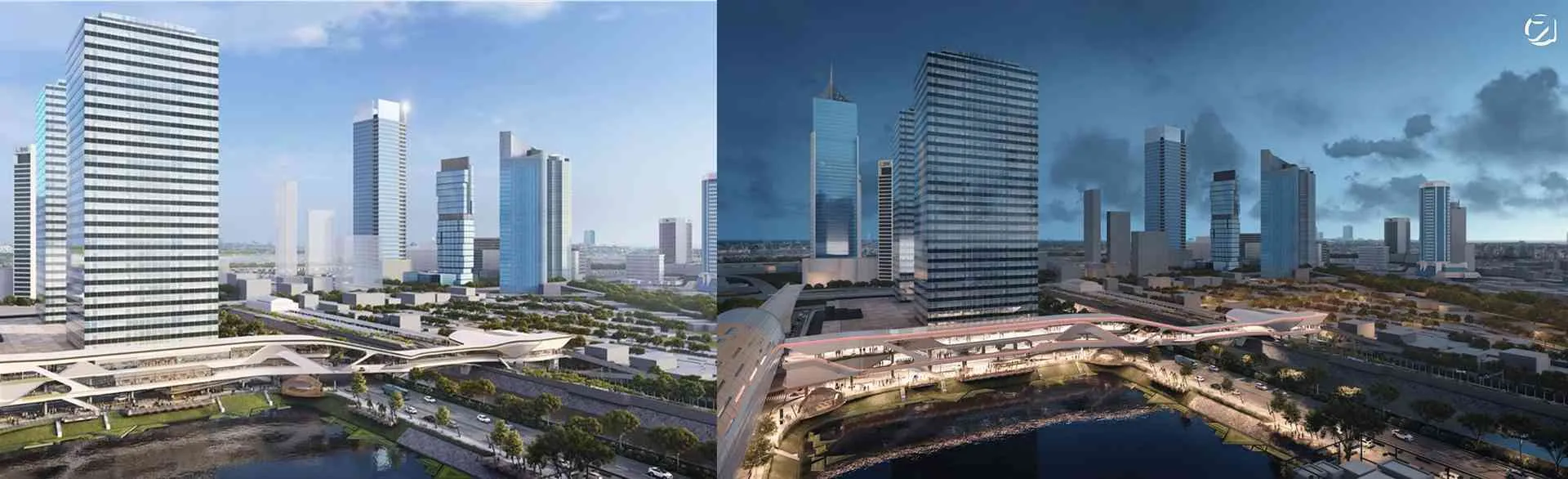

Although Jakarta has various transportation modes, as of 2021, the city still lacks a TH. The lack of integration between transportation systems creates challenges, as seen in the Dukuh Atas area. Previously, this area was not integrated, but it has now become an intermodal hub connecting the MRT, LRT, TransJakarta, KRL, Airport Railway, and online ojek (Kompas, 2021b). Additionally, this area also provides a space for community interaction (third place) (see Figure 1.8).

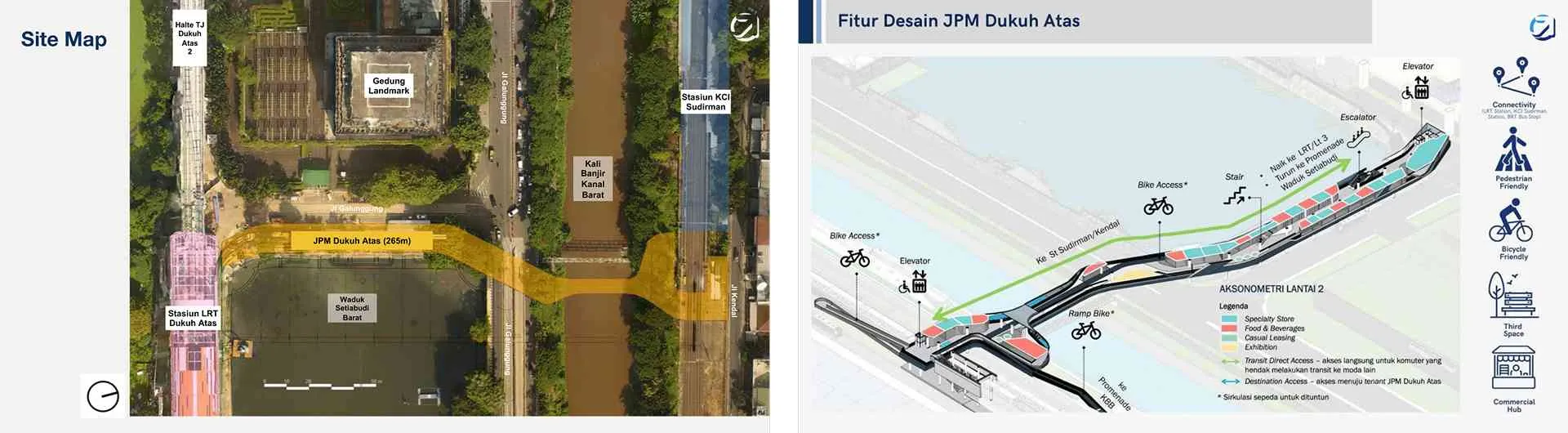

The Serambi Temu Dukuh Atas pedestrian bridge (JPM), designed by Urban+ consultants, adopts the transit-oriented development (TOD) concept. This bridge can accommodate up to 9,000 people, is earthquake-resistant, and was designed without support structures over the West Flood Canal. The PB connects Sudirman KRL Station with Dukuh Atas LRT, while reducing parking areas around the area (Farozy, 2021; Kompas, 2021a; Kompas, 2021c; Okta, 2021).

The PB also carries the concept of intermodal connectivity, city identity, urban experience, and inclusive public spaces. This area is equipped with commercial centers supporting various community activities, as shown in the feature diagram (Figure 1.9). This project has full support from the DKI Jakarta Provincial Government and the Indonesian Institute of Architects (IAI) Jakarta (Putri, 2018).

Based on this, the need for a TH in Jakarta is clear. Therefore, a TH must be designed with a focus on accessibility and walkability and must receive full support from all stakeholders. This is needed to encourage a paradigm shift towards more human-centered design rather than car-centered design (Kompas, 2021b).

1.2.2.2. Main issue: Need for PS (GOS)#

Jakarta still lags behind in providing PS and green open spaces (GOS), despite their importance for the city. According to Law No. 26/2007 on Spatial Planning, at least 30% of urban areas must be designated as GOS (20% public and 10% private).

The DKI Jakarta Provincial Government targets 16% public GOS by 2030. GOS plays a crucial role in improving social and environmental impact (Desyani, 2013; Ekaputra and Sudarwani, 2013; Fitri and Kusuma, 2017). This target aligns with Sustainable Development Goal (SDG) 11.2, which aims to create a safe, comfortable, and sustainable transportation system (UN, 2021a).

However, the lack of PS and GOS is evident, such as at the National Monument (Monas), Jakarta’s city icon, which is unfriendly to visitors. Monas is enclosed, poorly maintained, and has a gate-and-wall concept. As a result, people prefer malls over PS or GOS. Prof. Calderia argued, “A city designed with walls or fences will destroy the sustainability of the city itself” (Juda, 2016).

1.2.2.3. Sub-issue: Traffic congestion#

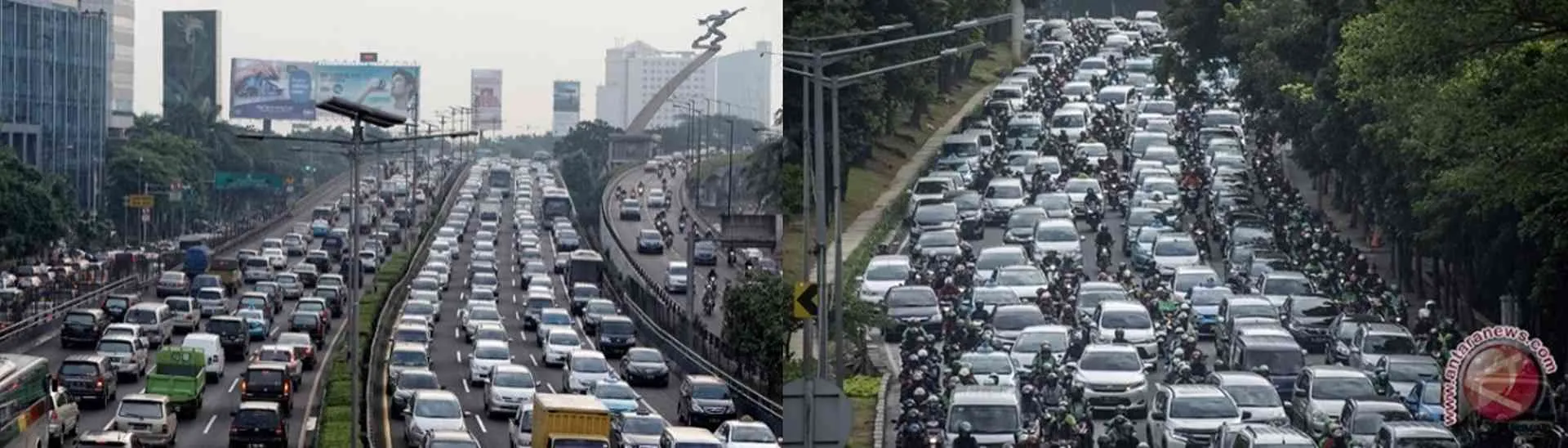

Many countries try to reduce congestion and carbon emissions from motor vehicles (Le and Trinh, 2016). In Jakarta, traffic congestion is a major issue, mainly due to the lack of public transportation facilities. Although public transportation is still limited, there is some good news. Danang Parikesit, Chairperson of MTI, mentioned, “Based on MTI data, public transportation usage in Jakarta dropped from 40% to 14% in the last 10 years” (Fathiyah, 2013). This decline has worsened congestion, as more people switch to private vehicles, especially motorcycles, which are considered faster.

1.2.2.4. Sub-issue: Rising traffic violations#

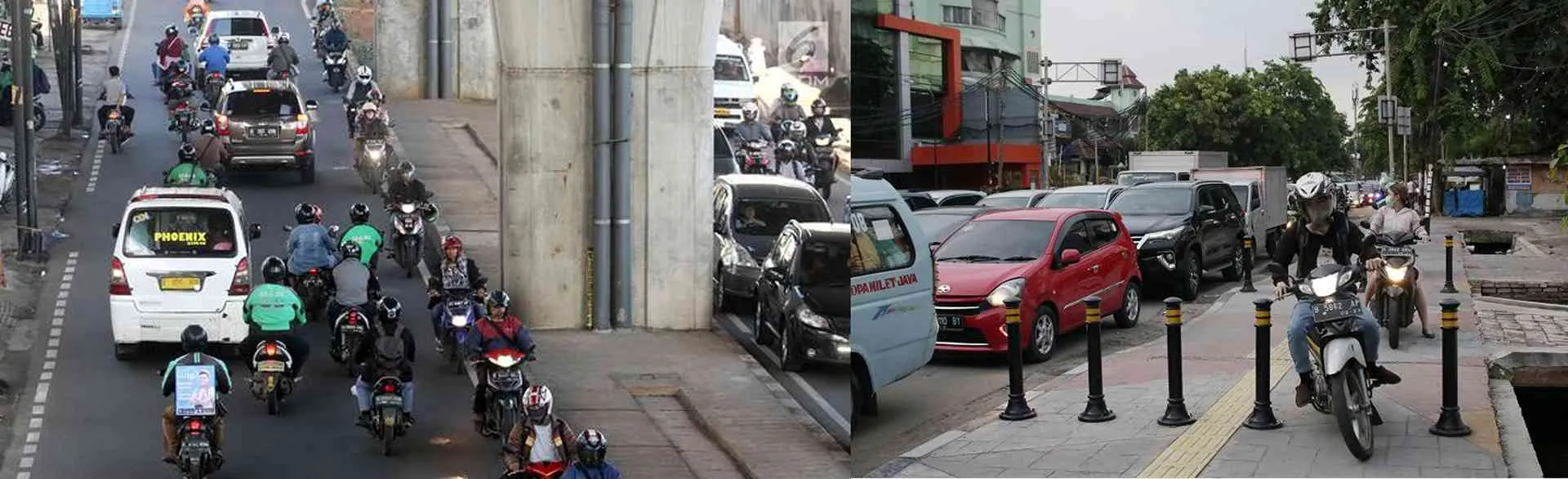

Traffic violations in Jakarta continue to rise, mainly due to the city’s dependence on private vehicles that dominate road space. As the capital city, Jakarta faces various challenges, including an increasing population and activities, such as students and workers, which worsen traffic congestion and traffic violations (Le and Trinh, 2016).

1.2.2.5. Sub-issue: Need for accessible entertainment destinations#

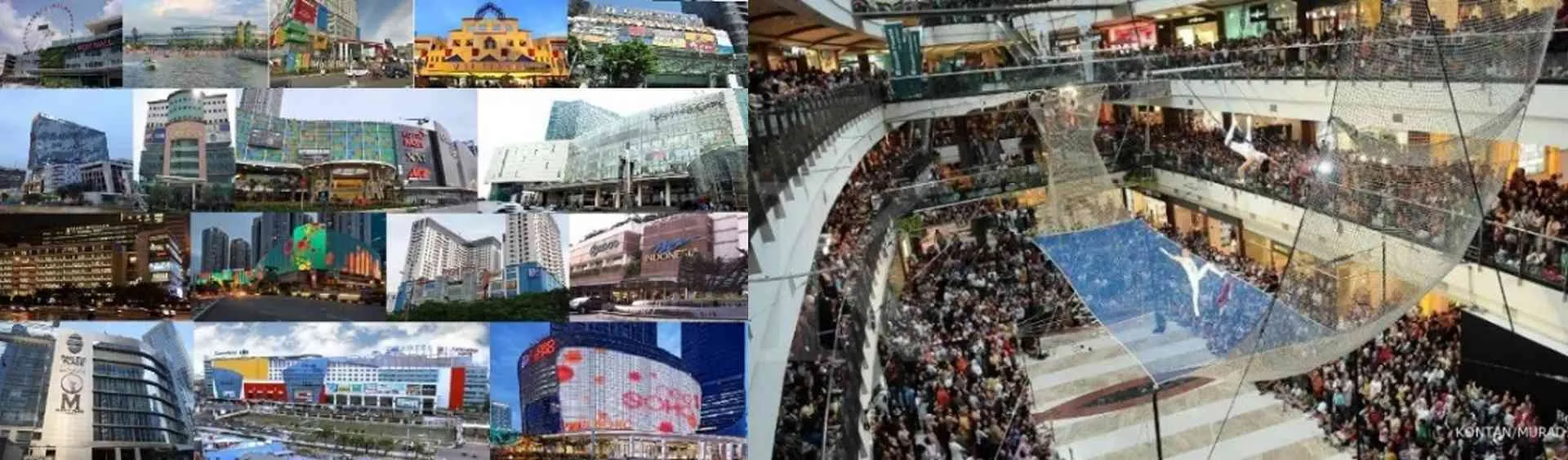

The trend of mall development in Jakarta emerged as a response to the lack of social and economic space in PS. Atmawidjaja stated, “The abundance of malls is a clear sign that the city is sick.” The limited PS makes it difficult to meet the city’s social and environmental needs. In 2019, Jakarta had over 200 malls, a sharp increase from 75 malls in 2012. This means around 125 malls were built in just seven years (Mega, 2019b; Nediari, 2013).

1.3. Problem statement and design objectives#

Based on the background and issues outlined, the author has formulated the following problem statement and design objectives:

1.4. Scope of study#

1. The design location is situated in West Jakarta, DKI Jakarta.
2. The goal of the design is to identify the main challenges and key factors of the site.

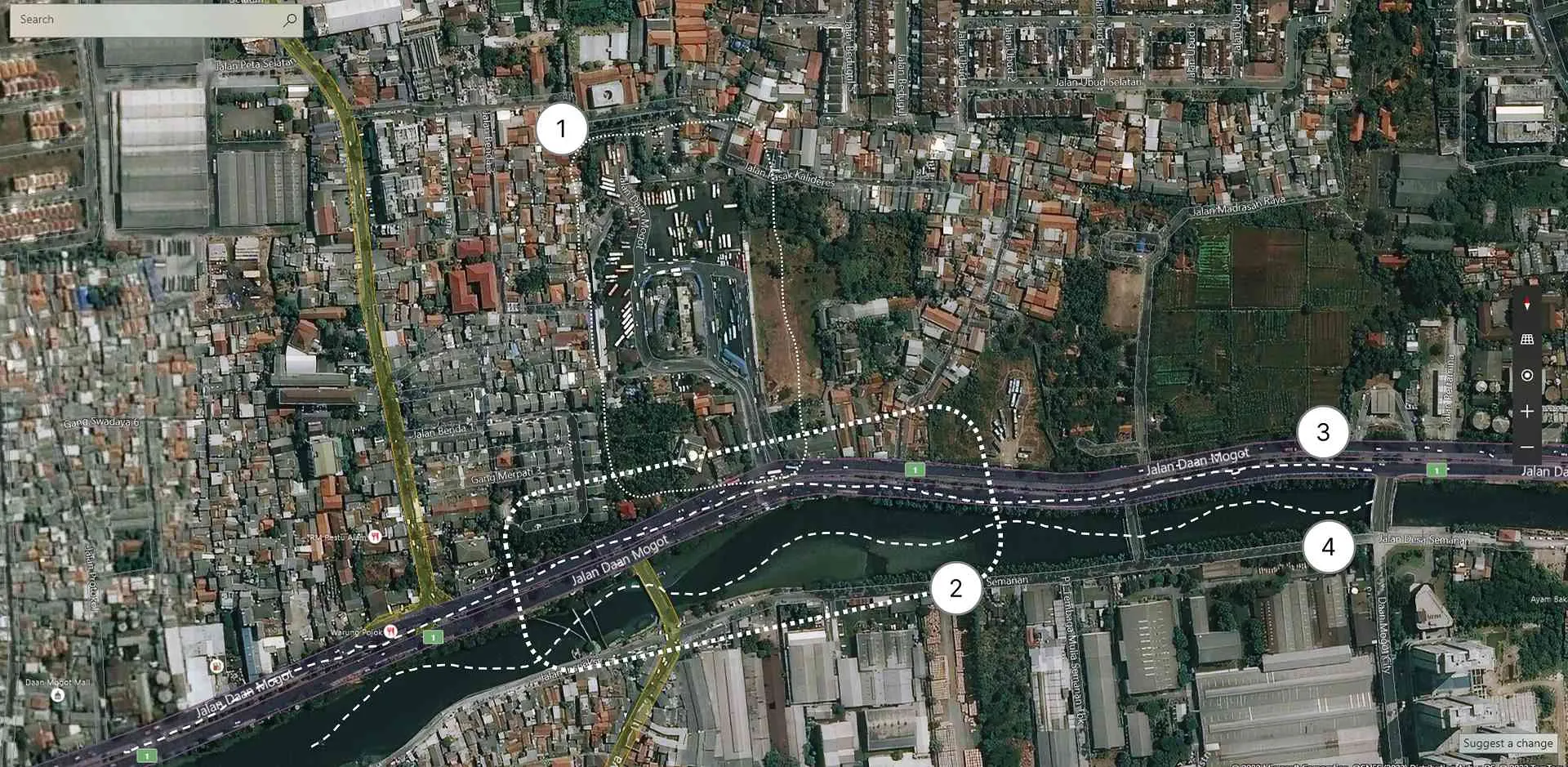

3. The boundaries of the site are defined as shown in Figure 1.13.

Site boundaries

About	Details
Location data	Near Kalideres Bus Terminal
Address	Jl. Daan Mogot, RT.4/RW.1, Kalideres, Kec. Kalideres, West Jakarta, Special Capital Region of Jakarta 11840
Coordinates	-6.156203, 106.707424
Planning area size	±157,989 m²
Map

1.5. Research approach#

The research process for this thesis is structured as follows:

1. Gathering and reviewing relevant theories, case studies, typologies, and regulations. Identifying the issues present at the site in the architectural and urban context of Jakarta.
2. Analyzing the design-related challenges concerning the area, city, and architecture.
3. Defining the design method, establishing the method structure, and determining the necessary input-output parameters and data.
4. Applying the dynamic multi-layer (DML) design method through six layers.
5. Developing concepts and ideas that take into account the environmental, climatic, and social factors.
6. Creating an architectural schematic design based on the analysis from the previous stages.
7. Concluding the design outcomes.

1.6. Contribution and novelty value#

The design of the TH using the dynamic multi-layer (DML) approach, which is human- and environment-centered, is expected to bring the following contributions:

• Design process: The architectural design method is developed using a measurable, practical, and efficient dynamic multi-layer (DML) approach.
• Socio-cultural impact: The TH design offers an opportunity for the community to gain a better understanding of the essence of integrated public transportation.
• City typology: This design contributes to shaping the urban landscape and improving the connectivity of Jakarta through better transit hubs.

1.7. Thesis structure#

3.1. Design method#

Table 3.1 presents the stages of the design method employed in the development of the TH project.

3.2. Explanation of the DML design method#

Figure 3.1 illustrates the DML design method diagram, from the first to the sixth layer, along with the objectives and output of each layer:

Technically, the DML design approach is further explained in Table 3.2, as follows:

5.1. Context and design concept#

Based on the analysis and simulations presented in Chapter 4 (summary illustration: Figure 5.1), the design of the TH and PS is based on the results of Gen47, Idv30. Thus, the recommended locations for the PS can be mapped. In accordance with the principles of TOD (Figure 5.2), particularly the aspect of walkability, the connectivity between terminals and stations, as well as the accessibility from residential areas to terminals and stations, can be improved.

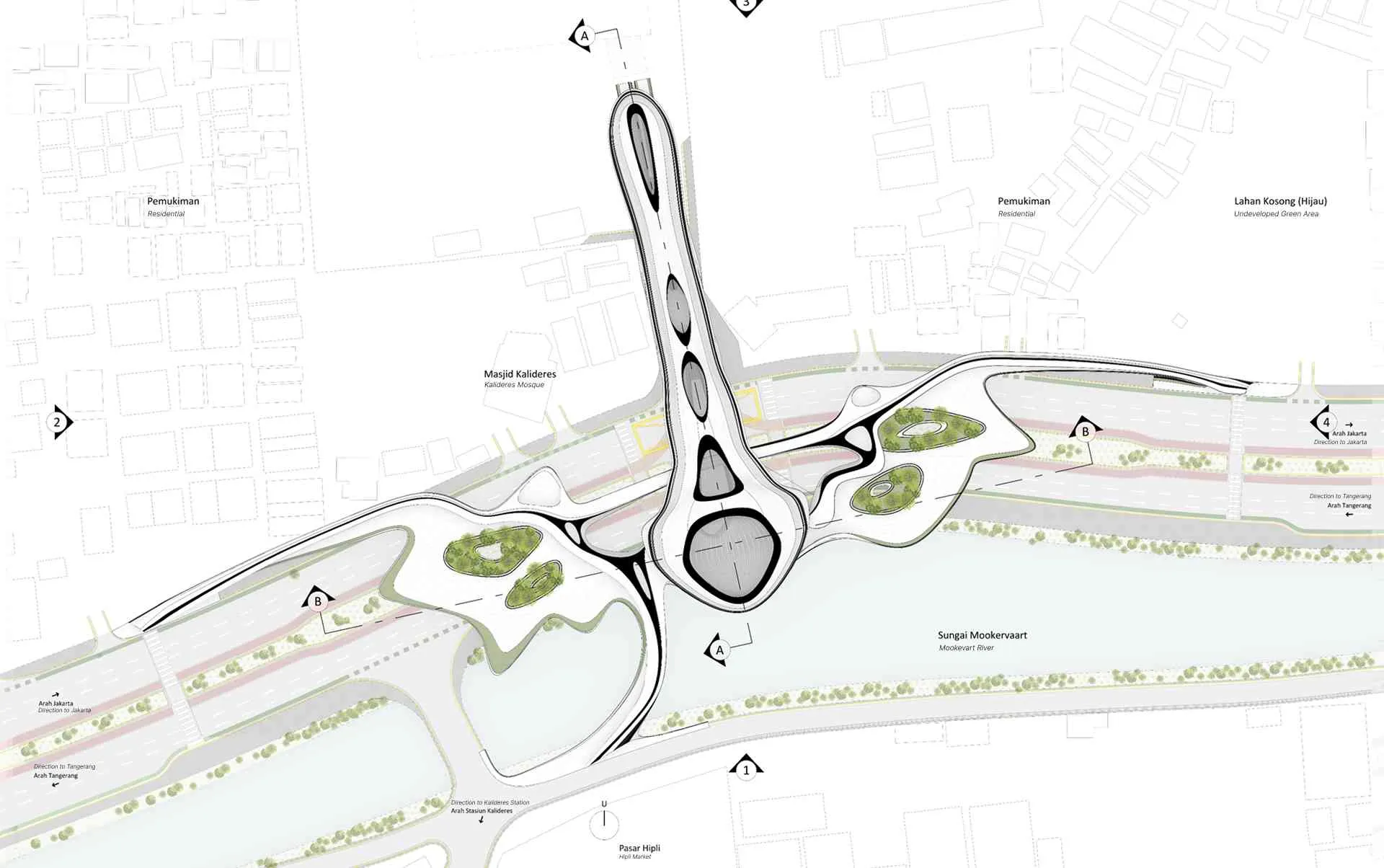

In Figure 5.2 (blue in the center), the building mass is placed at the core of the area, directly above National Road Jl. Daan Mogot. Its form is developed from the previous simulation patterns, ensuring that user movement within the design is both comfortable and efficient.

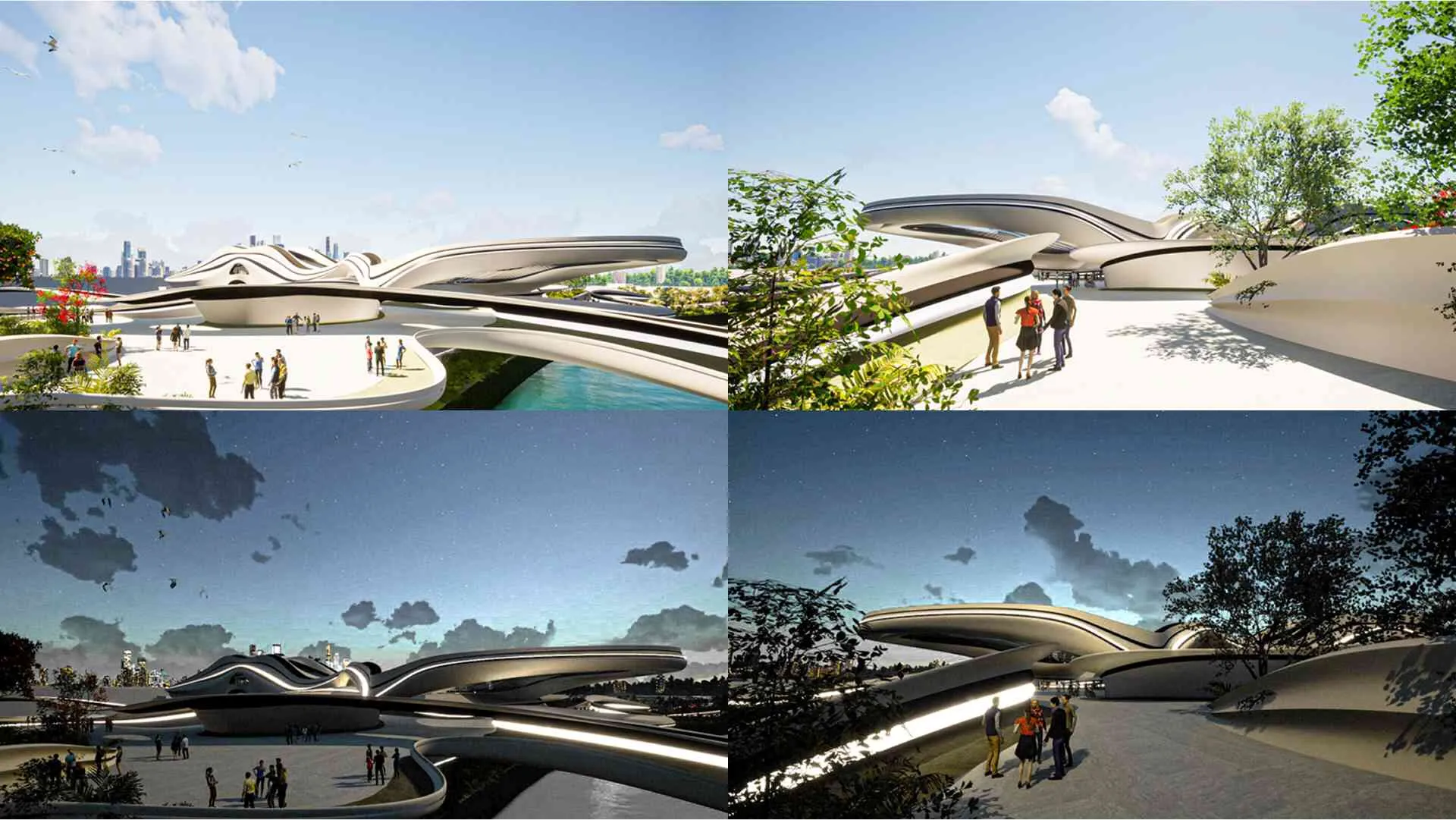

Conceptually, each side of the platform entrance is equipped with a ramp to ensure accessibility for persons with disabilities. The main circulation area is covered with a roof for shade. The central green space is located at the core of the platform with a void in its center. Along the north-south axis (see: Figure 5.4 and Figure 5.6), there is a semi-public building with a larger shading system compared to the platform.

5.2. Main zones and key features in the design#

The main zone in the TH is divided into two parts (see: Figure 5.8).

The platform functions as a public zone accessible to all users. Meanwhile, the tower is functionally divided: the ground and first floors serve as public zones, while the second, third, and fourth floors are designated as semi-public zones.

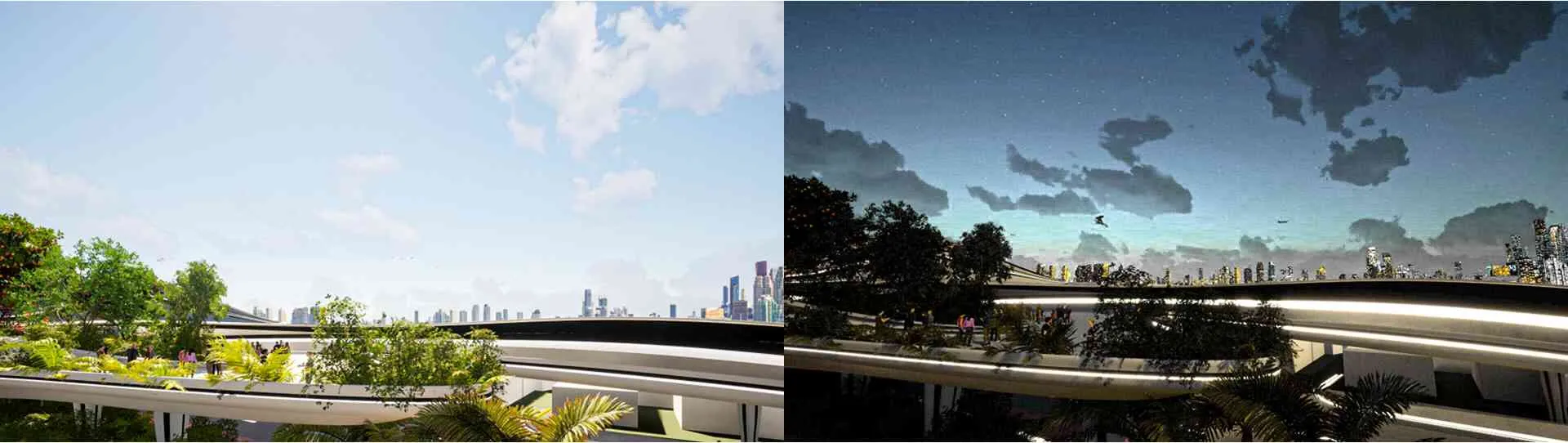

The green space feature is positioned at the center of each platform side, creating a more attractive space for users and the surrounding environment. Additionally, this design contributes to the increase of GOS in Jakarta (Figure 5.9).

5.3. Space program, features, and accessibility in the design#

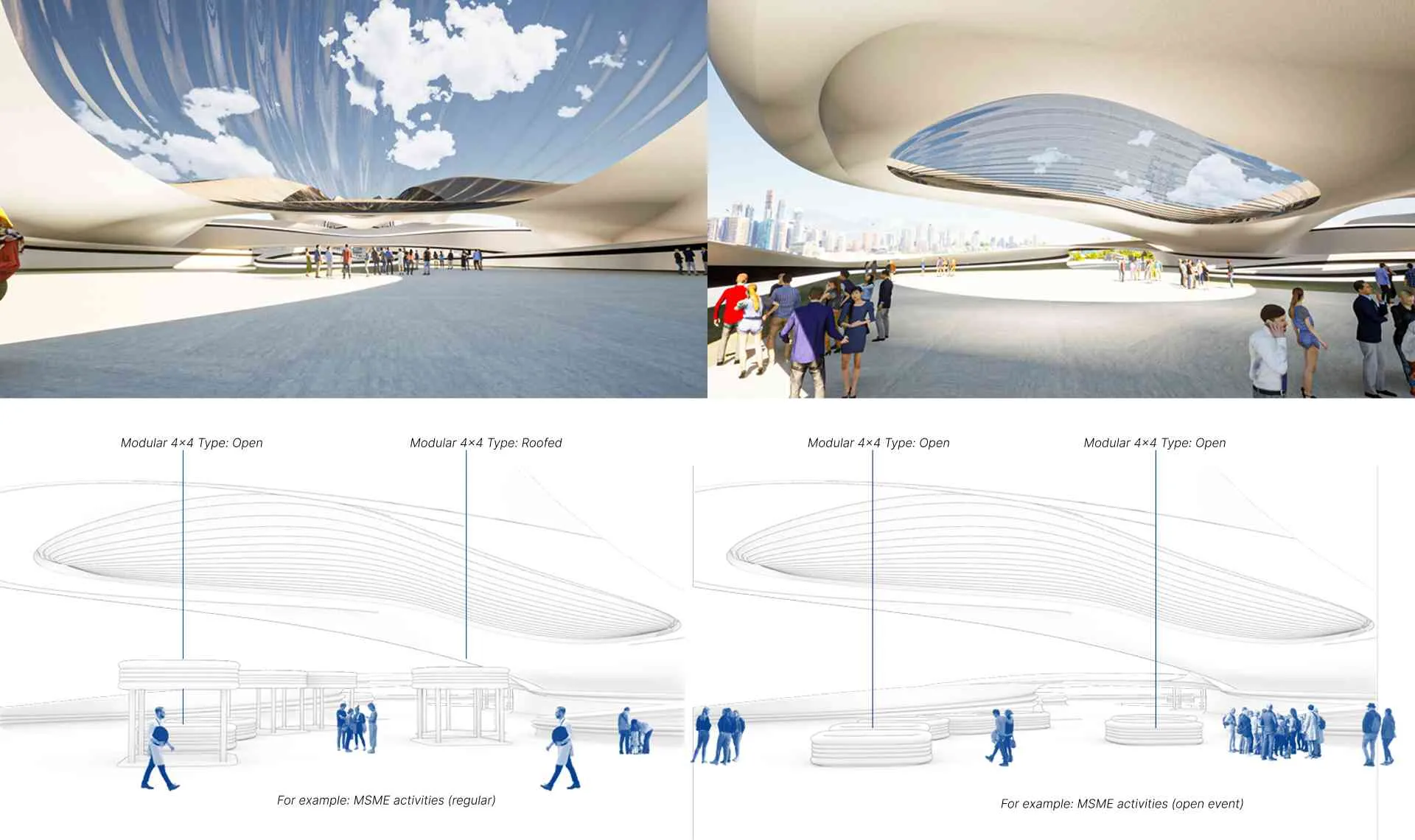

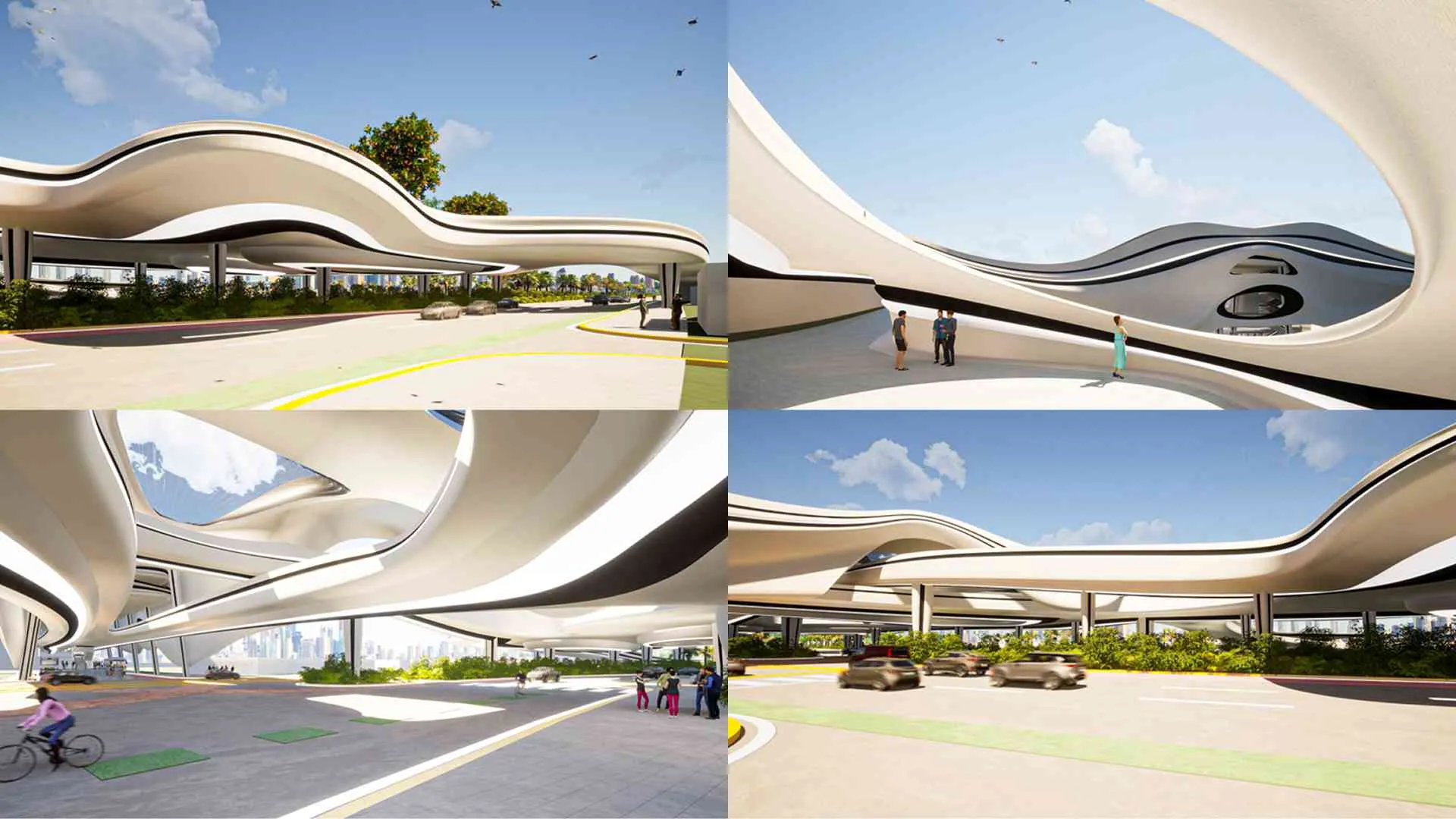

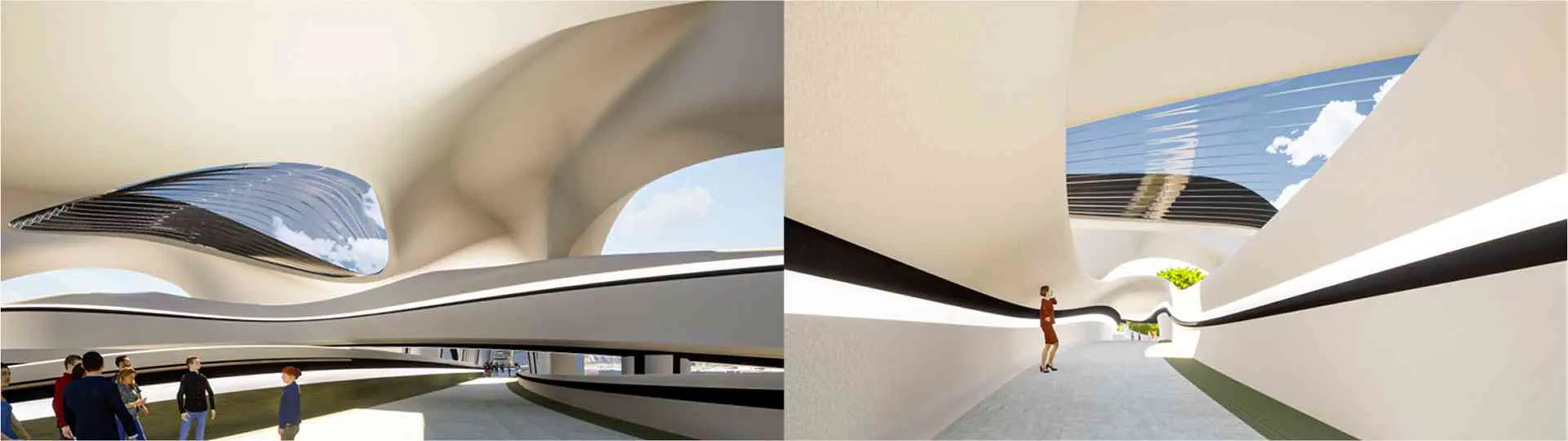

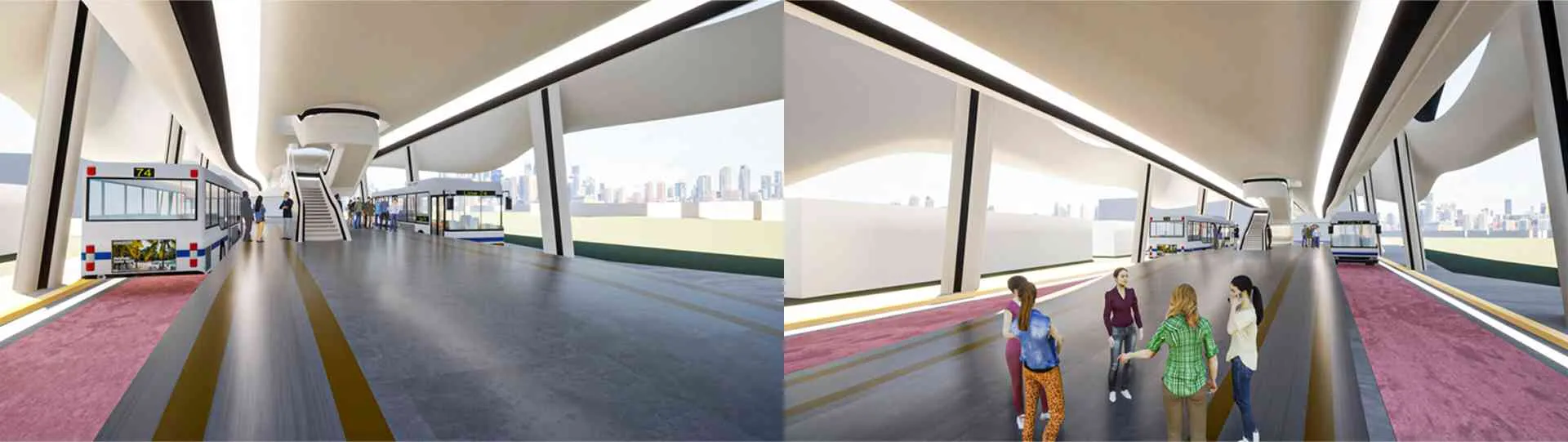

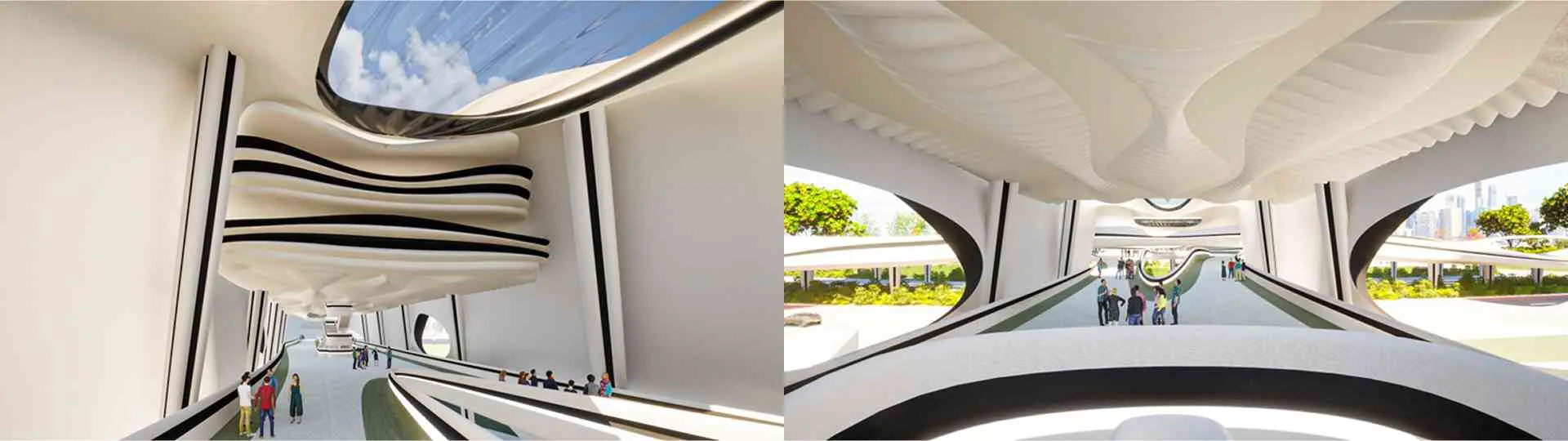

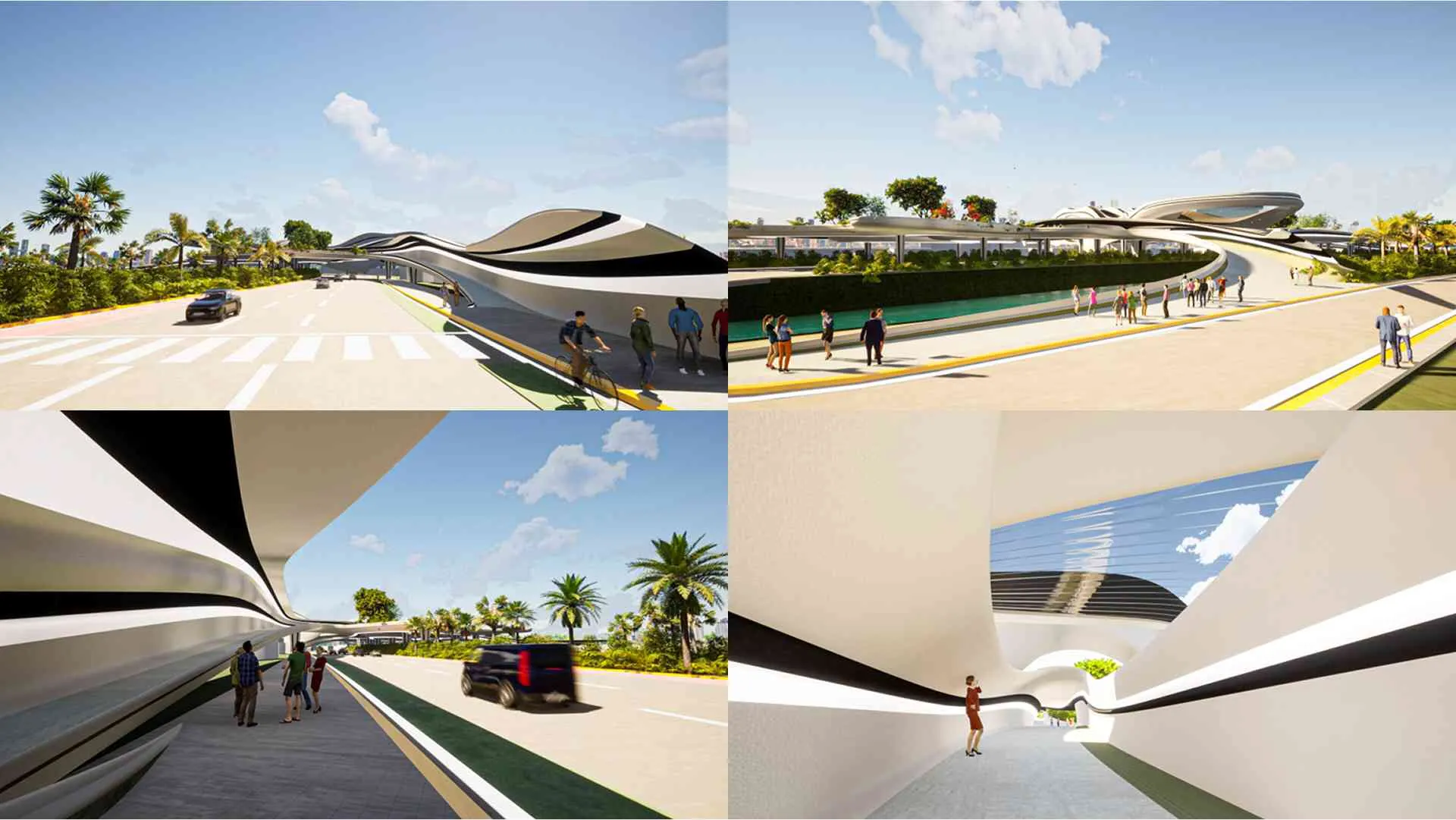

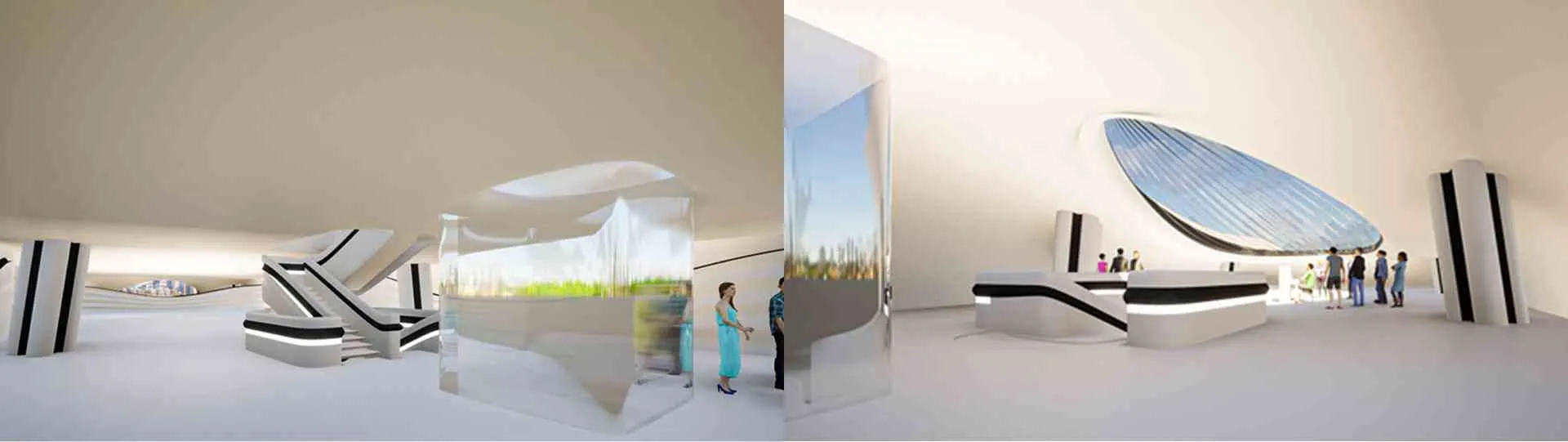

The platform includes several key functions: information center, area for MSME, viewing deck, green space, bridge, and other supporting services. The tower includes service areas, operations, management, restaurant, hotel, multiuse spaces, and additional facilities. Visualizations can be seen in Figure 5.11 to Figure 5.17.

5.4. Sequential design sections#

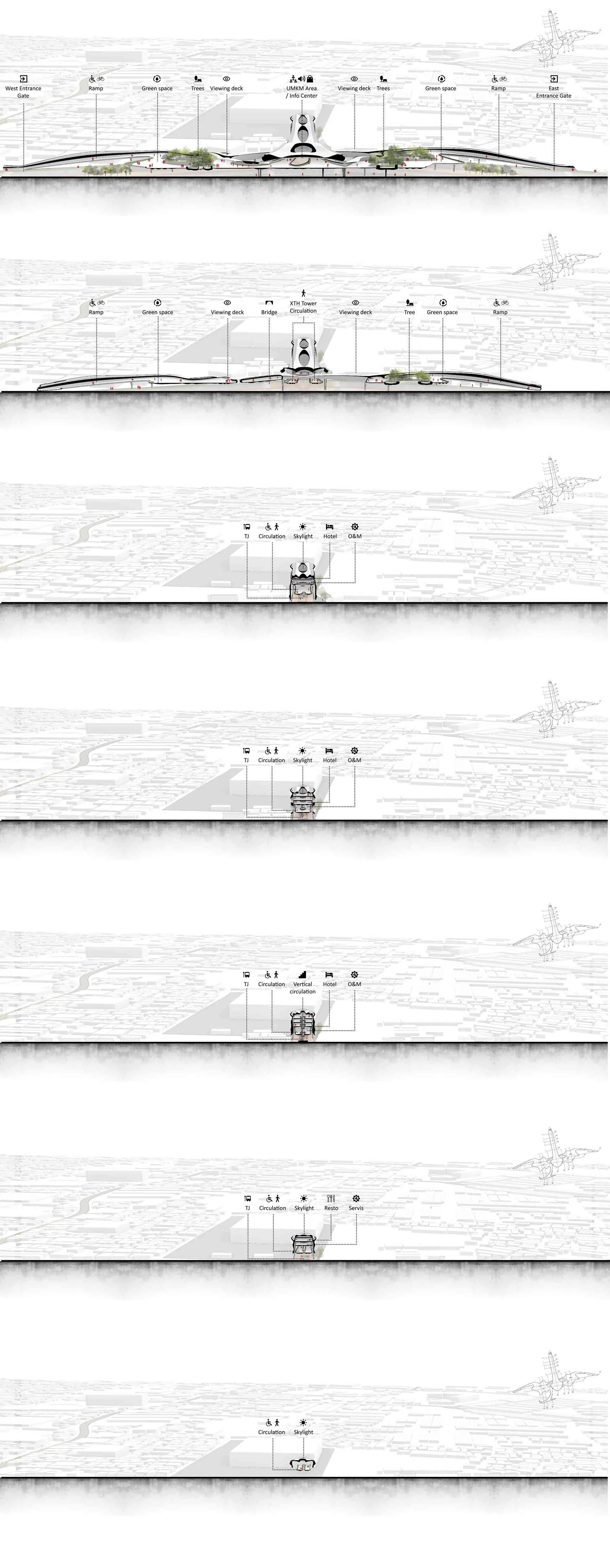

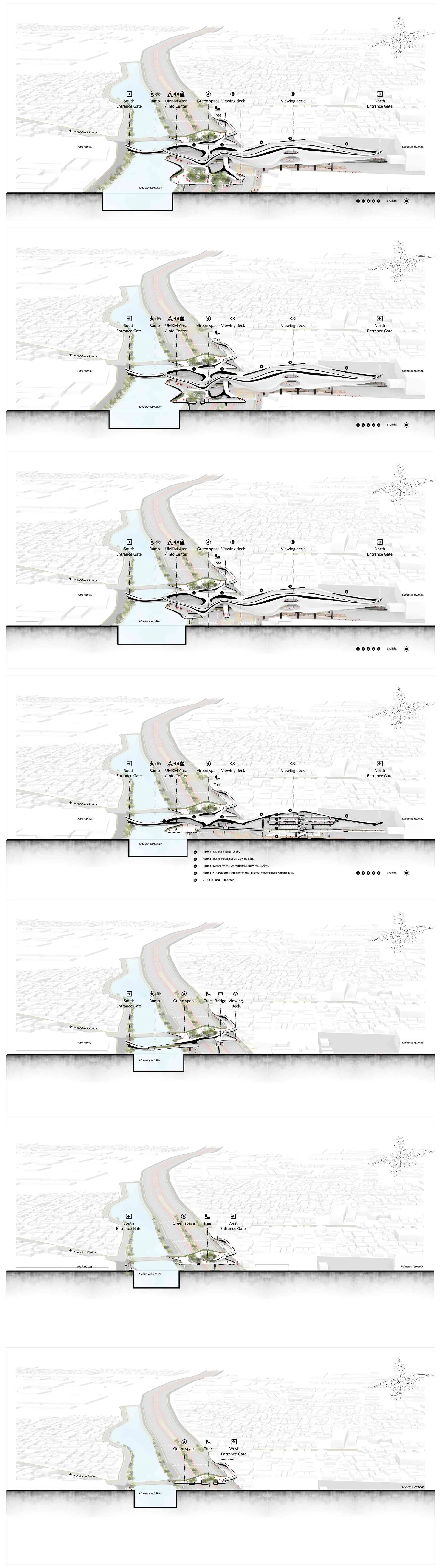

The perspective sections illustrate the design from east to west (X1–X7) and south to north (Y1–Y7). See Figure 5.18 and Figure 5.19.

5.5. Green concept#

The green concept is applied through the water collection system in the roof and platform floor gutters to irrigate plants in the green space. Energy efficiency is achieved through vertical openings (windows) and horizontal openings (skylights, voids). The use of prefabricated materials enhances construction efficiency and spatial comfort (see Figure 5.10).

5.6. Structure and materials#

The main materials used (see Figure 5.10):

1. Roof — Prefabricated tempered glass with a long-span steel structure.
2. Facade — Fiberglass Reinforced Plastic (GRP) panels with a Glass Fiber Reinforced Polymer (GFRP) structure.
3. Floor — Reinforced concrete with an epoxy coating finish.
4. Platform floor structure — Reinforced concrete with a waffle slab system.
5. Non-platform floor structure — Reinforced concrete, with the green space area using a minimum thickness of 1 meter.

5.7. Architectural drawings#

6.1. Conclusion#

The DML method facilitates the creation of pedestrian-friendly areas, integrated with public transportation, and designed with an optimal layout of PS based on walkability criteria. Through its dynamic approach, DML allows for the analysis of phenomena, simulations, and the selection of optimal solutions. This method synthesizes various transportation issues and case study contexts, establishing it as a comprehensive design guideline. The results of these analyses can further serve as a foundation for the design of TH and PS.

6.2. Recommendations#

1. For designers and architects — The DML method can be applied and developed in accordance with the specific requirements of a project or case study.
2. For researchers and developers — There is potential for further development of the DML method to enhance its capacity to support walkability-based design, human mobility, and the integration of transportation systems.
3. For governmental bodies — The DML method may be utilized to identify strategic nodes, such as public space locations, and to connect urban areas on a broader scale, ultimately improving the quality of life for the population.
4. For the community — Public involvement in the design process is crucial; the community can contribute by providing feedback to the government, designers, or architects to ensure that spatial planning aligns with local social and cultural needs.
